In grade 10 you learnt about the resultant vector in one dimension, we are going to extend this to
two dimensions. As a reminder, if you have a number of vectors (think forces for now) acting at
the same time you can represent the result of all of them together with a single vector known as
the resultant. The resultant vector will have the same effect as all the
vectors adding together.

We will focus on examples involving forces but it is very important to remember that
this applies to all physical quantities that can be described by vectors, forces, displacements,
accelerations, velocities and more.

Vectors on the Cartesian plane (ESBK4)

The first thing to make a note of is that in Grade 10 we worked with vectors all acting in a
line, on a single axis. We are now going to go further and start to deal with two

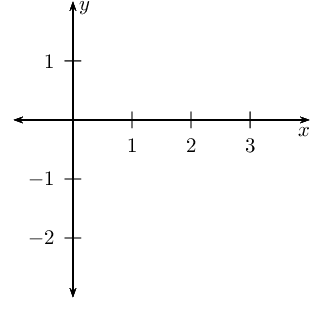

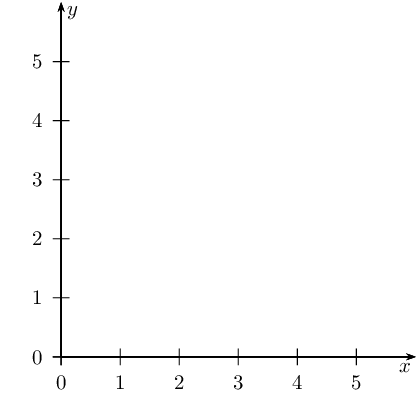

dimensions. We can represent this by using the Cartesian plane which consists of two
perpendicular (at a right angle) axes. The axes are a \(x\)-axis and a \(y\)-axis. We
normally draw the \(x\)-axis from left to right (horizontally) and the \(y\)-axis up and
down (vertically).

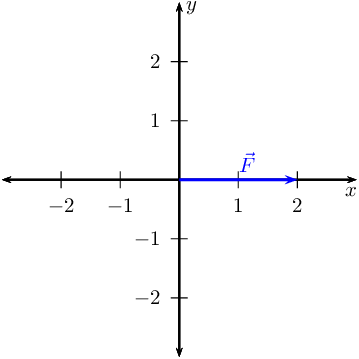

We can draw vectors on the Cartesian plane. For example, if we have a force, \(\vec{F}\), of
magnitude \(\text{2}\) \(\text{N}\) acting in the positive \(x\)-direction we can draw
it as a vector on the Cartesian plane.

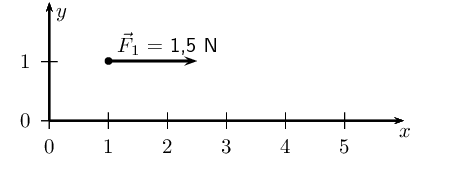

Notice that the length of the vector as measured using the axes is \(\text{2}\), the

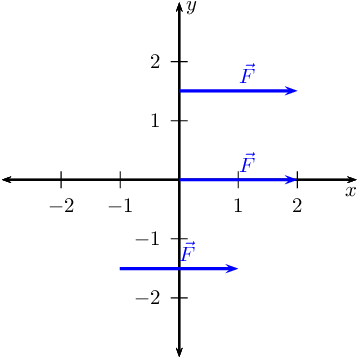

magnitude specified. A vector doesn't have to start at the origin but can be placed
anywhere on the Cartesian plane. Where a vector starts on the plane doesn't affect the
physical quantity as long as the magnitude and direction remain the same. That means
that all of the vectors in the diagram below can represent the same force. This property
is know as equality of vectors.

In the diagram the vectors have the same magnitude because the arrows are the same
length and they have the same direction. They are all
parallel to the \(x\)-direction and parallel to each other.

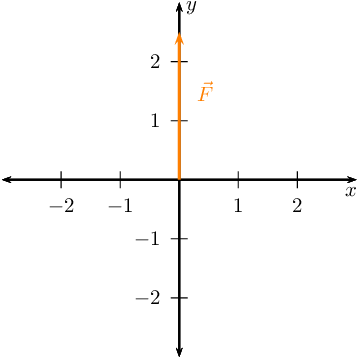

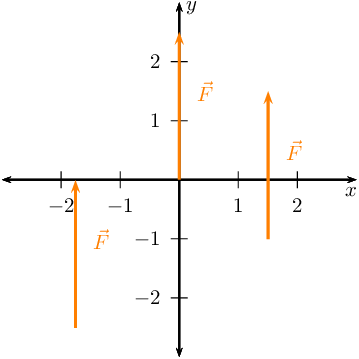

This applies equally in the \(y\)-direction. For example, if we have a force, \(\vec{F}\), of
magnitude \(\text{2,5}\) \(\text{N}\) acting in the positive \(y\)-direction we can draw
it as a vector on the Cartesian plane.

Just as in the case of the \(x\)-direction, a vector doesn't have to start at the origin but
can be placed anywhere on the Cartesian plane. All of the vectors in the diagram below
can represent the same force.

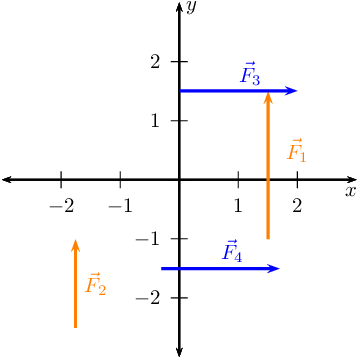

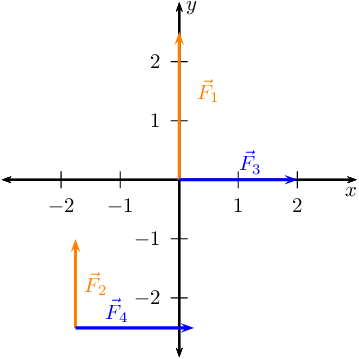

The following diagram shows an example of four force vectors, two vectors that are parallel
to each other and the \(y\)-axis as well as two that are parallel to each other and the
\(x\)-axis.

To emphasise that the vectors are perpendicular you can see in the figure below that when
originating from the same point the vector are at right angles.

Textbook Exercise 1.1

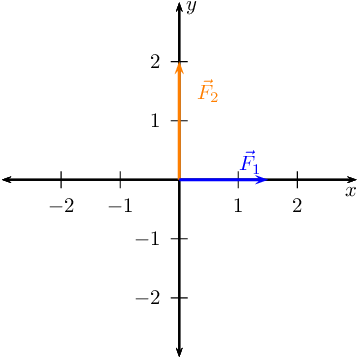

Draw the following forces as vectors on the Cartesian plane
originating at the origin:

\(\vec{F}_{1} = \text{1,5}\text{ N}\) in the positive
\(x\)-direction

\(\vec{F}_{2} = \text{2}\text{ N}\) in the positive
\(y\)-direction

We choose a scale of \(\text{1}\) \(\text{N}\):\(\text{1}\)
\(\text{cm}\). Now we sketch the vectors on the Cartesian plane
(we can place the vectors anywhere on the Cartesian plane, we
will place them starting at the origin):

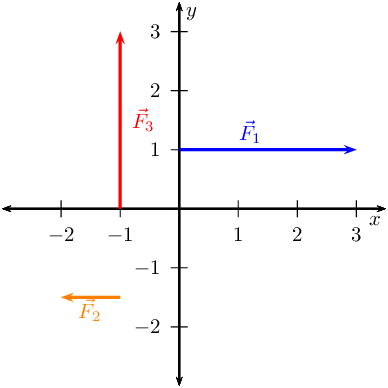

Draw the following forces as vectors on the Cartesian plane:

\(\vec{F}_{1} = \text{3}\text{ N}\) in the positive
\(x\)-direction

\(\vec{F}_{2} = \text{1}\text{ N}\) in the negative
\(x\)-direction

\(\vec{F}_{3} = \text{3}\text{ N}\) in the positive
\(y\)-direction

We choose a scale of \(\text{1}\) \(\text{N}\):\(\text{1}\)
\(\text{cm}\). Now we sketch the vectors on the Cartesian plane
(we can place the vectors anywhere on the Cartesian plane):

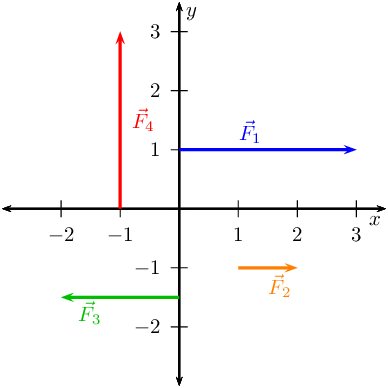

Draw the following forces as vectors on the Cartesian plane:

\(\vec{F}_{1} = \text{3}\text{ N}\) in the positive
\(x\)-direction

\(\vec{F}_{2} = \text{1}\text{ N}\) in the positive
\(x\)-direction

\(\vec{F}_{3} = \text{2}\text{ N}\) in the negative
\(x\)-direction

\(\vec{F}_{4} = \text{3}\text{ N}\) in the positive
\(y\)-direction

We choose a scale of \(\text{1}\) \(\text{N}\):\(\text{1}\)
\(\text{cm}\). Now we sketch the vectors on the Cartesian plane
(we can place the vectors anywhere on the Cartesian plane):

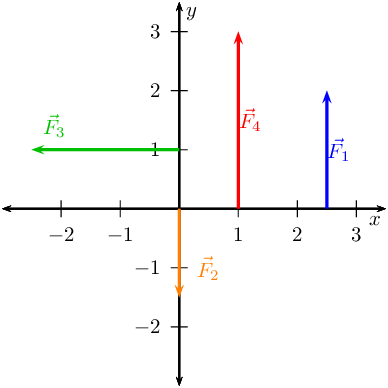

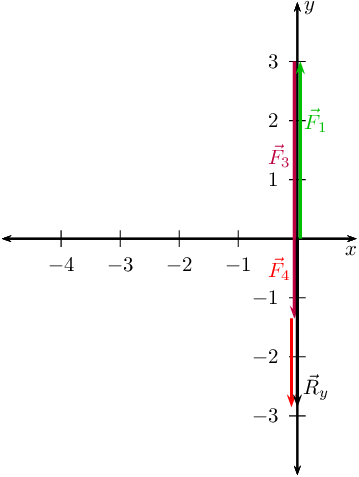

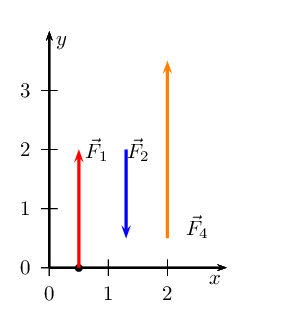

Draw the following forces as vectors on the Cartesian plane:

\(\vec{F}_{1} = \text{2}\text{ N}\) in the positive
\(y\)-direction

\(\vec{F}_{2} = \text{1,5}\text{ N}\) in the negative
\(y\)-direction

\(\vec{F}_{3} = \text{2,5}\text{ N}\) in the negative
\(x\)-direction

\(\vec{F}_{4} = \text{3}\text{ N}\) in the positive
\(y\)-direction

We choose a scale of \(\text{1}\) \(\text{N}\):\(\text{1}\)
\(\text{cm}\). Now we sketch the vectors on the Cartesian plane
(we can place the vectors anywhere on the Cartesian plane):

Vectors in two dimensions are not always parallel to an axis. We might know that a force acts at an
angle to an axis so we still know the direction of the force and if we know the magnitude we can
draw the force vector. For example, we can draw \(\vec{F}_{1} = \text{2}\text{ N}\) acting at
\(\text{45}\)\(\text{°}\) to the positive \(x\)-direction:

We always specify the angle as being anti-clockwise from the positive \(x\)-axis. So if we specified
an negative angle we would measure it clockwise from the \(x\)-axis. For example, \(\vec{F}_{1}
= \text{2}\text{ N}\) acting at \(-\text{45}\)\(\text{°}\) to the positive \(x\)-direction:

We can use many other ways of specifying the direction of a vector. The direction just needs to be
unambiguous. We have used the Cartesian coordinate system and an angle with the \(x\)-axis so
far but there are other common ways of specifying direction that you need to be aware of and
comfortable to handle.

Compass directions (ESBK5)

We can use compass directions when appropriate to specify the direction of a vector. For

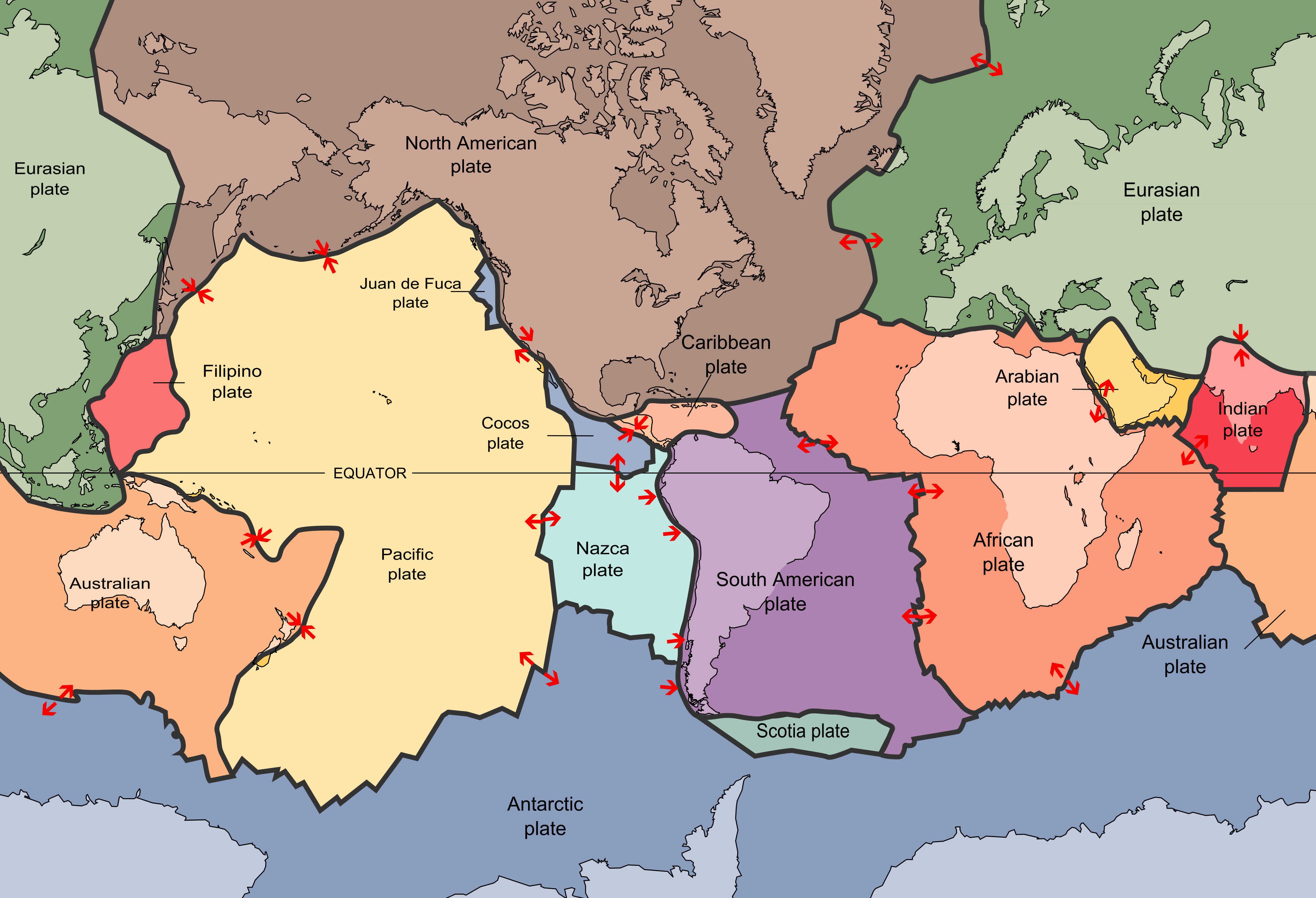

example, if we were describing the forces of tectonic plates (the sections of the
earth's crust that move) to talk about the forces involved in earthquakes we could talk
the force that the moving plates exert on each other.

The four cardinal directions are North, South, East and West when using a compass. They are
shown in this figure:

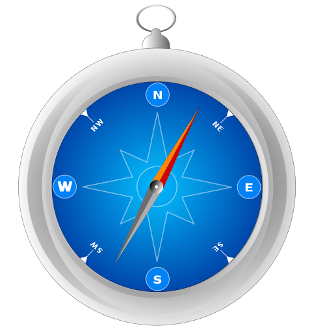

When specifying a direction of a vector using a compass directions are given by name, North
or South. If the direction is directly between two directions we can combine the names,
for example North-East is half-way between North and East. This can only happen for
directions at right angles to each other, you cannot say North-South as it is ambiguous.

Bearings (ESBK6)

Another way of using the compass to specify direction in a numerical way is to use bearings.
A bearing is an angle, usually measured clockwise from North. Note that
this is different to the Cartesian plane where angles are anti- or counter-clockwise
from the positive \(x\)-direction.

The resultant vector (ESBK7)

In grade 10 you learnt about adding vectors together in one dimension. The same principle can
be applied for vectors in two dimensions. The following examples show addition of
vectors. Vectors that are parallel can be shifted to fall on a line. Vectors falling on
the same line are called co-linear vectors. To add co-linear vectors we use the
tail-to-head method you learnt in Grade 10. In the figure below we remind you of the
approach of adding co-linear vectors to get a resultant vector.

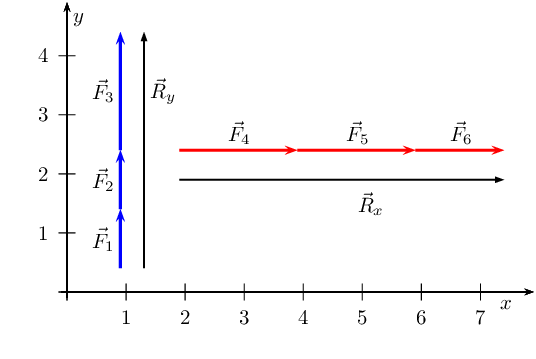

In the above figure the blue vectors are in the \(y\)-direction and the red vectors are in
the \(x\)-direction. The two black vectors represent the resultants of the co-linear
vectors graphically.

What we have done is implement the tail-to-head method of vector addition for the vertical
set of vectors and the horizontal set of vectors.

Worked example 1: Revision: head-to-tail addition in one dimension

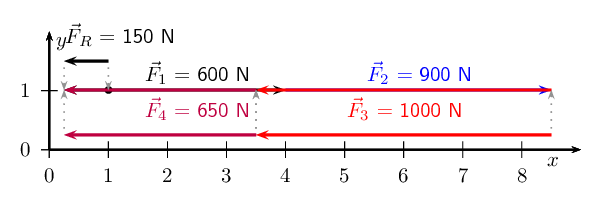

Use the graphical head-to-tail method to determine the resultant force on a
rugby player if two players on his team are pushing him forwards with
forces of \(\stackrel{\to }{{F}_{1}}\) = \(\text{600}\) \(\text{N}\) and
\(\stackrel{\to }{{F}_{2}}\) = \(\text{900}\) \(\text{N}\) respectively
and two players from the opposing team are pushing him backwards with
forces of \(\stackrel{\to }{{F}_{3}}\) = \(\text{1 000}\)
\(\text{N}\) and \(\stackrel{\to }{{F}_{4}}\) = \(\text{650}\)
\(\text{N}\) respectively.

Choose a scale and a reference direction

Let's choose a scale of \(\text{100}\) \(\text{N}\): \(\text{0,5}\)
\(\text{cm}\) and for our diagram we will define the positive direction
as to the right.

Choose one of the vectors and draw it as an arrow of the
correct length in the correct direction

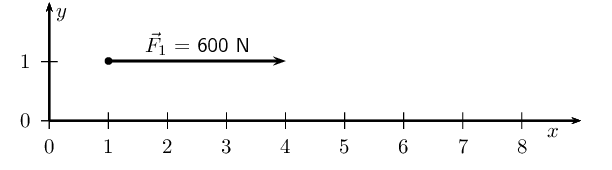

We will start with drawing the vector \(\stackrel{\to }{{F}_{1}}\) =
\(\text{600}\) \(\text{N}\) pointing in the positive direction.
Using our scale of \(\text{0,5}\) \(\text{cm}\) : \(\text{100}\)
\(\text{N}\), the length of the arrow must be \(\text{3}\) \(\text{cm}\)
pointing to the right.

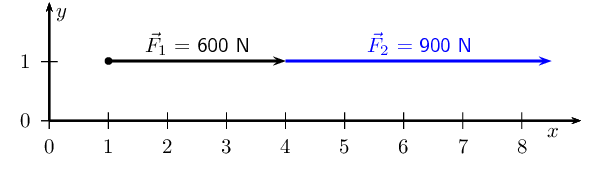

Take the next vector and draw it starting at the arrowhead of
the previous vector

The next vector is \(\stackrel{\to }{{F}_{2}}\) = \(\text{900}\) \(\text{N}\)
in the same direction as \(\stackrel{\to }{{F}_{1}}\). Using the scale,
the arrow should be \(\text{4,5}\) \(\text{cm}\) long and pointing to
the right.

Take the next vector and draw it starting at the arrowhead of
the previous vector

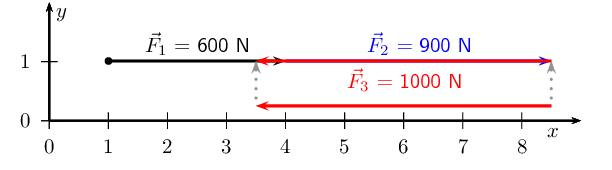

The next vector is \(\stackrel{\to }{{F}_{3}}\) = \(\text{1 000}\)
\(\text{N}\) in the opposite direction. Using the scale, this
arrow should be \(\text{5}\) \(\text{cm}\) long and point to the
left.

Note: We are working in one dimension so this arrow would be
drawn on top of the first vectors to the left. This will get confusing
so we'll draw it next to the actual line as well to show you what it
looks like.

Take the next vector and draw it starting at the arrowhead of
the previous vector

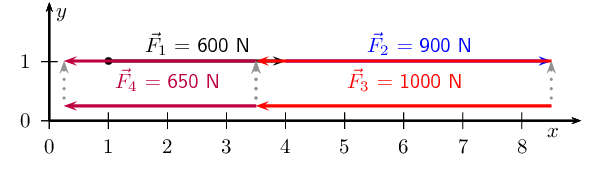

The fourth vector is \(\stackrel{\to }{{F}_{4}}\) = \(\text{650}\)
\(\text{N}\) in the opposite direction. Using the scale, this arrow must
be \(\text{3,25}\) \(\text{cm}\) long and point to the left.

Draw the resultant, measure its length and find its direction

We have now drawn all the force vectors that are being applied to the player.
The resultant vector is the arrow which starts at the tail of the first
vector and ends at the head of the last drawn vector.

The resultant vector measures \(\text{0,75}\) \(\text{cm}\) which, using our
scale is equivalent to \(\text{150}\) \(\text{N}\) and points to the
left (or the negative direction or the direction the
opposing team members are pushing in).

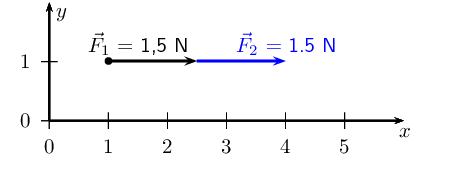

Textbook Exercise 1.2

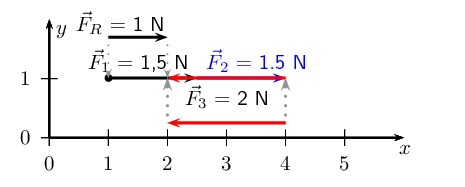

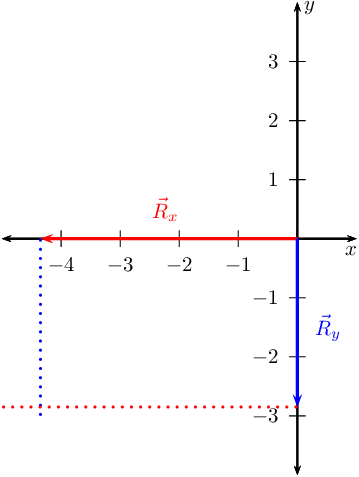

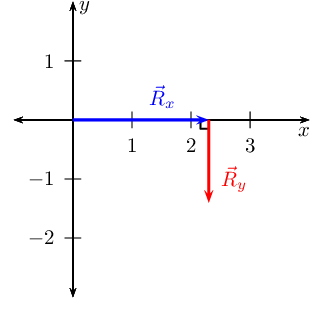

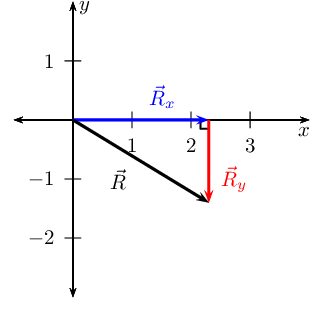

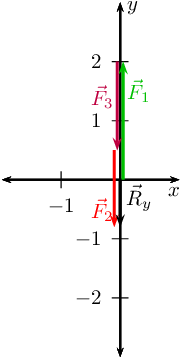

Find the resultant in the \(x\)-direction, \(R_x\), and
\(y\)-direction, \(R_y\) for the following forces:

\(\vec{F}_{1} = \text{1,5}\text{ N}\) in the positive
\(x\)-direction

\(\vec{F}_{2} = \text{1,5}\text{ N}\) in the positive
\(x\)-direction

\(\vec{F}_{3} = \text{2}\text{ N}\) in the negative
\(x\)-direction

We choose a scale of \(\text{1}\) \(\text{N}\): \(\text{1}\)
\(\text{cm}\) and for our diagram we will define the positive
direction as to the right.

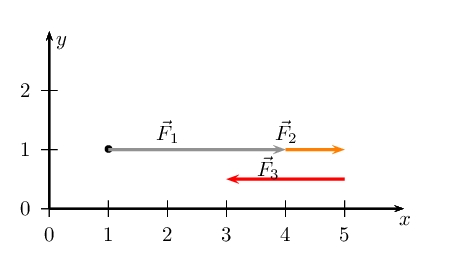

We will start with drawing the vector \(\stackrel{\to }{{F}_{1}}\) =
\(\text{1,5}\) \(\text{N}\) pointing in the positive direction.
Using our scale of \(\text{1}\) \(\text{N}\) : \(\text{1}\)
\(\text{cm}\), the length of the arrow must be \(\text{1,5}\)
\(\text{cm}\) pointing to the right.

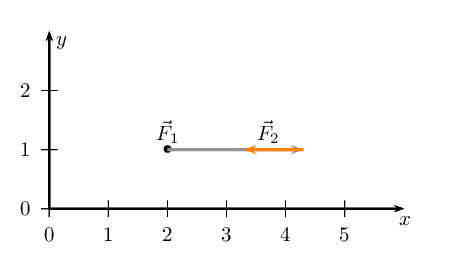

The next vector is \(\stackrel{\to }{{F}_{2}}\) = \(\text{1,5}\)
\(\text{N}\) in the same direction as \(\stackrel{\to
}{{F}_{1}}\). Using the scale, the arrow should be
\(\text{1,5}\) \(\text{cm}\) long and pointing to the right.

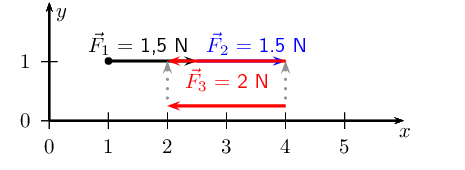

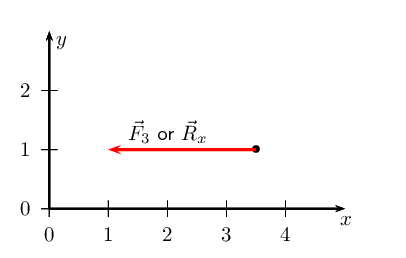

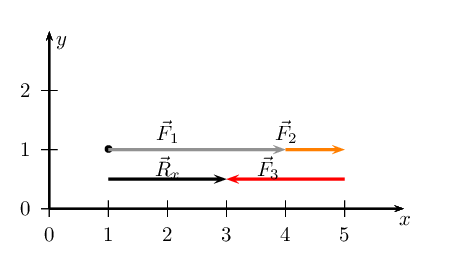

The next vector is \(\stackrel{\to }{{F}_{3}}\) = \(\text{2}\)
\(\text{N}\) in the opposite direction. Using the
scale, this arrow should be \(\text{2}\) \(\text{cm}\) long and
point to the left.

Note: We are working in one dimension so this arrow
would be drawn on top of the first vectors to the left. This
will get confusing so we'll draw it next to the actual line as
well to show you what it looks like.

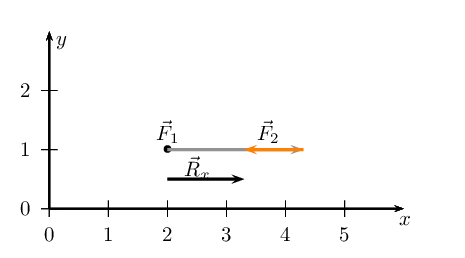

We have now drawn all the force vectors that are given. The resultant
vector is the arrow which starts at the tail of the first vector
and ends at the head of the last drawn vector.

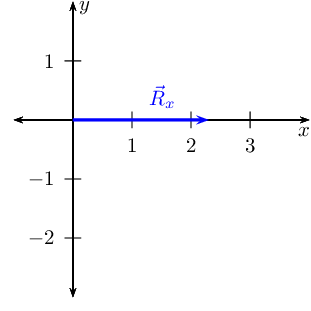

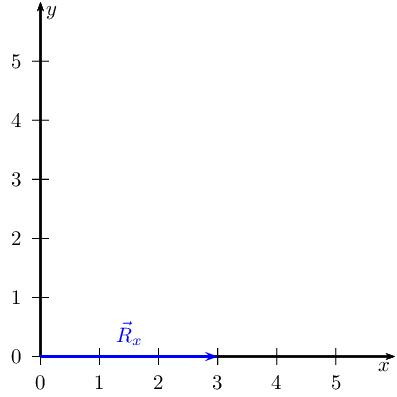

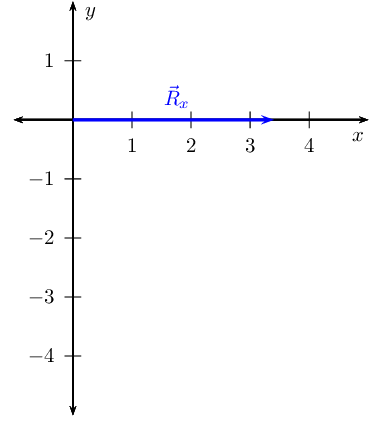

The resultant vector measures \(\text{1}\) \(\text{cm}\) which, using
our scale is equivalent to \(\text{1}\) \(\text{N}\) and points
to the right (or the positive direction). This is
\(\vec{R}_{x}\). For this set of vectors we have no vectors
pointing in the \(y\)-direction and so we do not need to find
\(\vec{R}_{y}\).

Find the resultant in the \(x\)-direction, \(\vec{R}_x\), and
\(y\)-direction, \(\vec{R}_y\) for the following forces:

\(\vec{F}_{1} = \text{2,3}\text{ N}\) in the positive
\(x\)-direction

\(\vec{F}_{2} = \text{1}\text{ N}\) in the negative
\(x\)-direction

\(\vec{F}_{3} = \text{2}\text{ N}\) in the positive
\(y\)-direction

\(\vec{F}_{4} = \text{3}\text{ N}\) in the negative
\(y\)-direction

We choose a scale of \(\text{1}\) \(\text{N}\): \(\text{1}\)
\(\text{cm}\) and for our diagram we will define the positive
direction as to the right.

Before we draw the vectors we note the lengths of the vectors using
our scale:

\begin{align*}
\vec{F}_{1} & = \text{positive } x \text{-direction} \\
\vec{F}_{2} & = \text{negative } x \text{-direction} \\
\vec{F}_{3} & = \text{positive } y \text{-direction} \\
\vec{F}_{4} & = \text{negative } y \text{-direction}
\end{align*}

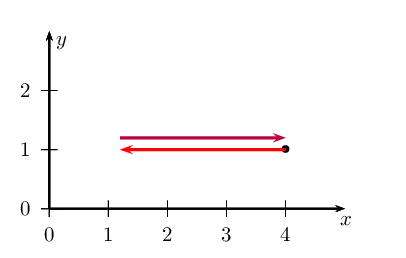

We now look at the two vectors in the \(x\)-direction to find
\(\vec{R}_{x}\):

We have now drawn all the force vectors that act in the
\(x\)-direction. To find \(\vec{R}_{x}\) we note that the
resultant vector is the arrow which starts at the tail of the
first vector and ends at the head of the last drawn vector in
that direction.

We note that \(\vec{R}_{x}\) is \(\text{1,3}\) \(\text{cm}\) or
\(\text{1,3}\) \(\text{N}\) in the positive \(x\)-direction.

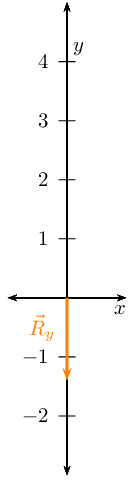

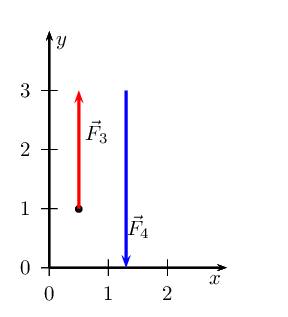

We now look at the two vectors in the \(y\)-direction to find
\(\vec{R}_{y}\):

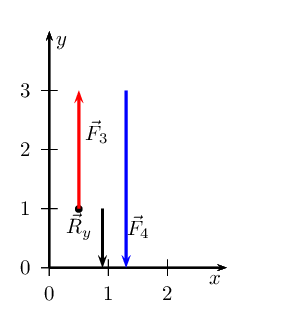

We have now drawn all the force vectors that act in the
\(y\)-direction. To find \(\vec{R}_{y}\) we note that the
resultant vector is the arrow which starts at the tail of the
first vector and ends at the head of the last drawn vector in
that direction.

We note that \(\vec{R}_{y}\) is \(\text{1}\) \(\text{cm}\) or
\(\text{1}\) \(\text{N}\) in the negative \(y\)-direction.

\(\vec{R}_{x}\) = \(\text{1,3}\) \(\text{N}\) and points in the
positive \(x\)-direction. \(\vec{R}_{y}\) = \(\text{1}\)
\(\text{N}\) and points in the negative \(y\)-direction.

Find the resultant in the \(x\)-direction, \(\vec{R}_x\), and
\(y\)-direction, \(\vec{R}_y\) for the following forces:

\(\vec{F}_{1} = \text{3}\text{ N}\) in the positive
\(x\)-direction

\(\vec{F}_{2} = \text{1}\text{ N}\) in the positive
\(x\)-direction

\(\vec{F}_{3} = \text{2}\text{ N}\) in the negative
\(x\)-direction

\(\vec{F}_{4} = \text{3}\text{ N}\) in the positive
\(y\)-direction

We choose a scale of \(\text{1}\) \(\text{N}\): \(\text{1}\)
\(\text{cm}\) and for our diagram we will define the positive
direction as to the right.

Before we draw the vectors we note the lengths of the vectors using
our scale:

\begin{align*}
\vec{F}_{1} & = \text{positive } x \text{-direction} \\
\vec{F}_{2} & = \text{positive } x \text{-direction} \\
\vec{F}_{3} & = \text{negative } x \text{-direction} \\
\vec{F}_{4} & = \text{positive } y \text{-direction}
\end{align*}

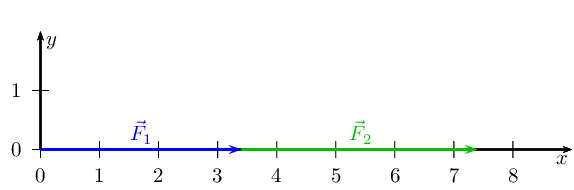

We now look at the three vectors in the \(x\)-direction to find
\(\vec{R}_{x}\):

We have now drawn all the force vectors that act in the
\(x\)-direction. To find \(\vec{R}_{x}\) we note that the
resultant vector is the arrow which starts at the tail of the
first vector and ends at the head of the last drawn vector in
that direction.

We note that \(\vec{R}_{x}\) is \(\text{2}\) \(\text{cm}\) or
\(\text{2}\) \(\text{N}\) in the positive \(x\)-direction.

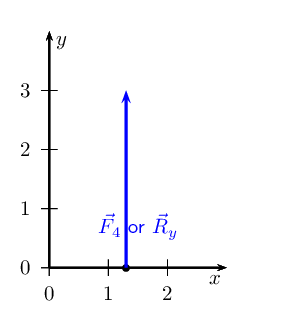

We now look at the vectors in the \(y\)-direction to find
\(\vec{R}_{y}\). We notice that we only have one vector in this
direction and so that vector is the resultant.

We note that \(\vec{R}_{y}\) is \(\text{3}\) \(\text{cm}\) or
\(\text{3}\) \(\text{N}\) in the positive \(y\)-direction.

\(\vec{R}_{x}\) = \(\text{2}\) \(\text{N}\) and points in the
positive \(x\)-direction. \(\vec{R}_{y}\) = \(\text{3}\)
\(\text{N}\) and points in the positive \(y\)-direction.

Find the resultant in the \(x\)-direction, \(\vec{R}_x\), and
\(y\)-direction, \(\vec{R}_y\) for the following forces:

\(\vec{F}_{1} = \text{2}\text{ N}\) in the positive
\(y\)-direction

\(\vec{F}_{2} = \text{1,5}\text{ N}\) in the negative
\(y\)-direction

\(\vec{F}_{3} = \text{2,5}\text{ N}\) in the negative
\(x\)-direction

\(\vec{F}_{4} = \text{3}\text{ N}\) in the positive
\(y\)-direction

We choose a scale of \(\text{1}\) \(\text{cm}\): \(\text{1}\)
\(\text{N}\) and for our diagram we will define the positive
direction as to the right.

Before we draw the vectors we note the lengths of the vectors using
our scale:

\begin{align*}
\vec{F}_{1} & = \text{positive } y \text{-direction} \\
\vec{F}_{2} & = \text{negative } y \text{-direction} \\
\vec{F}_{3} & = \text{negative } x \text{-direction} \\
\vec{F}_{4} & = \text{positive } y \text{-direction}
\end{align*}

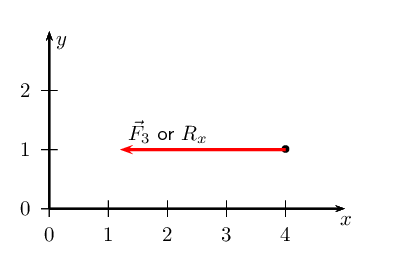

We look at the vectors in the \(x\)-direction to find
\(\vec{R}_{x}\). We notice that we only have one vector in this
direction and so that vector is the resultant.

We note that \(\vec{R}_{x}\) is \(\text{2,5}\) \(\text{cm}\) or
\(\text{2,5}\) \(\text{N}\) in the negative \(x\)-direction.

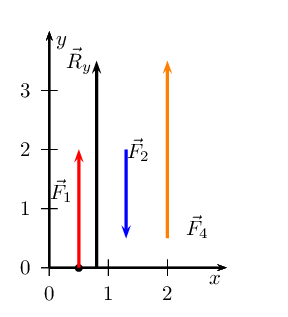

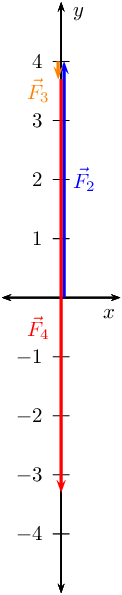

We now look at the three vectors in the \(y\)-direction to find
\(\vec{R}_{y}\):

We have now drawn all the force vectors that act in the
\(y\)-direction. To find \(\vec{R}_{y}\) we note that the
resultant vector is the arrow which starts at the tail of the
first vector and ends at the head of the last drawn vector in
that direction.

We note that \(\vec{R}_{y}\) is \(\text{3,5}\) \(\text{cm}\) or
\(\text{3,5}\) \(\text{N}\) in the positive \(y\)-direction.

\(\vec{R}_{x}\) = \(\text{2,5}\) \(\text{N}\) and points in the
negative \(x\)-direction. \(\vec{R}_{y}\) = \(\text{3,5}\)
\(\text{N}\) and points in the positive \(y\)-direction.

Find a force in the \(x\)-direction, \(F_x\), and \(y\)-direction,
\(F_y\), that you can add to the following forces to make the
resultant in the \(x\)-direction, \(R_x\), and \(y\)-direction,
\(R_y\) zero:

\(\vec{F}_{1} = \text{2,4}\text{ N}\) in the positive
\(y\)-direction

\(\vec{F}_{2} = \text{0,7}\text{ N}\) in the negative
\(y\)-direction

\(\vec{F}_{3} = \text{2,8}\text{ N}\) in the negative
\(x\)-direction

\(\vec{F}_{4} = \text{3,3}\text{ N}\) in the positive
\(y\)-direction

To solve this problem we will draw the vectors on the Cartesian plane
and then look at what the resultant vector is. Then we determine
what force vector to add so that the resultant vector is
\(\text{0}\).

We choose a scale of \(\text{1}\) \(\text{cm}\): \(\text{1}\)
\(\text{N}\) and for our diagram we will define the positive
direction as to the right.

Before we draw the vectors we note the lengths of the vectors using
our scale:

\begin{align*}
\vec{F}_{1} & = \text{positive } y \text{-direction} \\
\vec{F}_{2} & = \text{negative } y \text{-direction} \\
\vec{F}_{3} & = \text{negative } x \text{-direction} \\
\vec{F}_{4} & = \text{positive } y \text{-direction}
\end{align*}

We look at the vectors in the \(x\)-direction to find
\(\vec{R}_{x}\). We notice that we only have one vector in this
direction and so that vector is the resultant.

We note that \(\vec{R}_{x}\) is \(\text{2,8}\) \(\text{cm}\) or
\(\text{2,8}\) \(\text{N}\) in the negative \(x\)-direction.

So if we add a force of \(\text{2,8}\) \(\text{N}\) in the positive
\(x\)-direction the resultant will be \(\text{0}\):

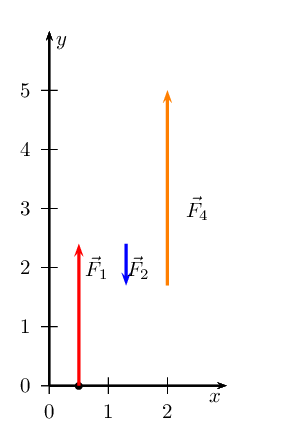

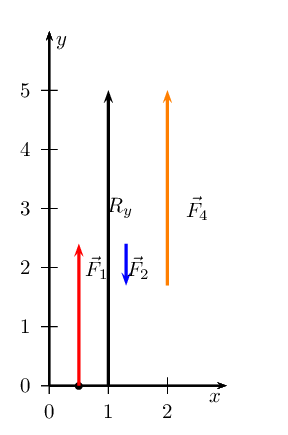

We now look at the three vectors in the \(y\)-direction to find
\(\vec{R}_{y}\):

We have now drawn all the force vectors that act in the
\(y\)-direction. To find \(\vec{R}_{y}\) we note that the
resultant vector is the arrow which starts at the tail of the
first vector and ends at the head of the last drawn vector in
that direction.

We note that \(\vec{R}_{y}\) is \(\text{5}\) \(\text{cm}\) or
\(\text{5}\) \(\text{N}\) in the positive \(y\)-direction.

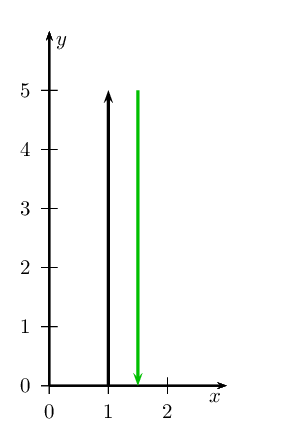

So if we add a force of \(\text{5}\) \(\text{N}\) in the negative
\(y\)-direction the resultant will be \(\text{0}\):

We must add a force of \(\text{2,8}\) \(\text{N}\) in the positive
\(x\)-direction and a force of \(\text{5}\) \(\text{N}\) in the
negative \(y\)-direction.

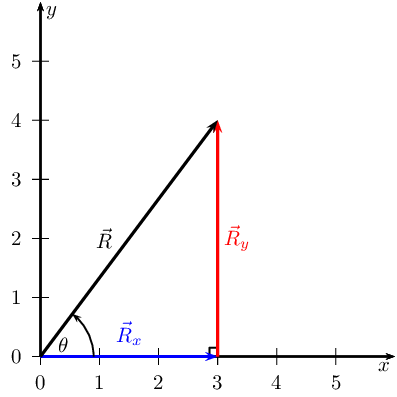

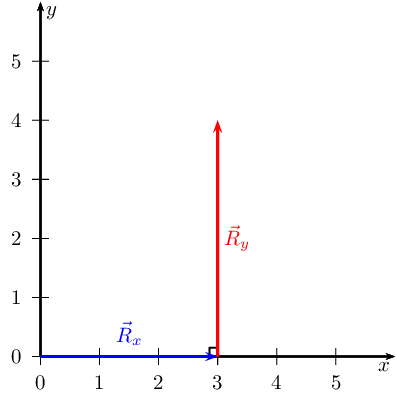

Magnitude of the resultant of vectors at right angles (ESBK8)

We apply the same principle to vectors that are at right angles or perpendicular to each
other.

Sketching tail-to-head method

The tail of the one vector is placed at the head of the other but in two dimensions
the vectors may not be co-linear. The approach is to draw all the vectors, one
at a time. For the first vector begin at the origin of the Cartesian plane, for
the second vector draw it from the head of the first vector. The third vector
should be drawn from the head of the second and so on. Each vector is drawn from
the head of the vector that preceded it. The order doesn't matter as the
resultant will be the same if the order is different.

Let us apply this procedure to two vectors:

\(\vec{F}_{1} = \text{2}\text{ N}\) in the positive \(y\)-direction

\(\vec{F}_{2} = \text{1,5}\text{ N}\) in the positive \(x\)-direction

We first draw a Cartesian plane with the first vector originating at the origin:

The next step is to take the second vector and draw it from the head of the first
vector:

The resultant, \(\vec{R}\), is the vector connecting the tail of the first vector
drawn to the head of the last vector drawn:

It is important to remember that the order in which we draw the vectors doesn't
matter. If we had drawn them in the opposite order we would have the same
resultant, \(\vec{R}\). We can repeat the process to demonstrate this:

We first draw a Cartesian plane with the second vector originating at the origin:

The next step is to take the other vector and draw it from the head of the vector we
have already drawn:

The resultant, \(\vec{R}\), is the vector connecting the tail of the first vector
drawn to the head of the last vector drawn (the vector from the start point to
the end point):

Worked example 2: Sketching vectors using tail-to-head

Sketch the resultant of the following force vectors using the
tail-to-head method:

\(\vec{F}_{1} = \text{2}\text{ N}\) in the positive
\(y\)-direction

\(\vec{F}_{2} = \text{1,5}\text{ N}\) in the positive
\(x\)-direction

\(\vec{F}_{3} = \text{1,3}\text{ N}\) in the negative
\(y\)-direction

\(\vec{F}_{4} = \text{1}\text{ N}\) in the negative
\(x\)-direction

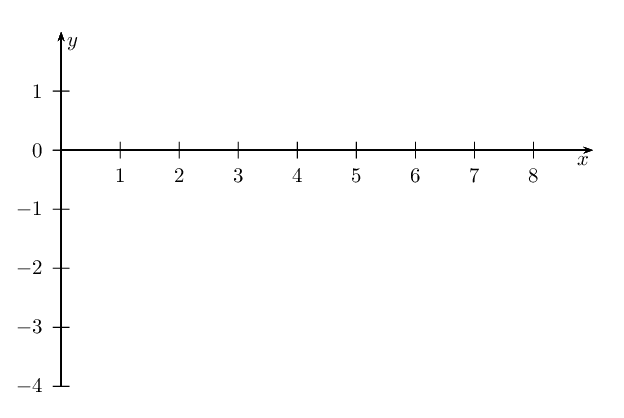

Draw the Cartesian plane and the first vector

First draw the Cartesian plane and force, \(\vec{F}_{1}\) starting at
the origin:

Draw the second vector

Starting at the head of the first vector we draw the tail of the
second vector:

Draw the third vector

Starting at the head of the second vector we draw the tail of the
third vector:

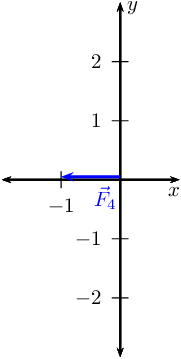

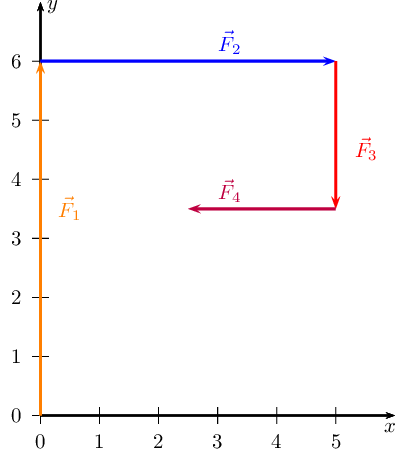

Draw the fourth vector

Starting at the head of the third vector we draw the tail of the
fourth vector:

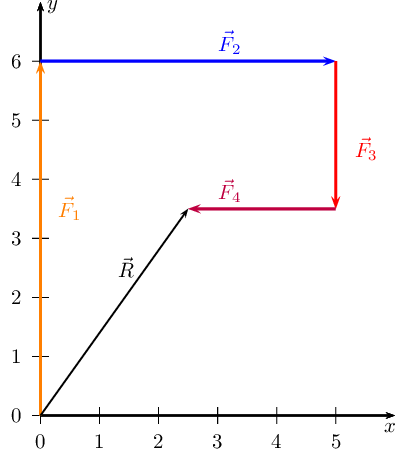

Draw the resultant vector

Starting at the origin draw the resultant vector to the head of the
fourth vector:

Worked example 3: Sketching vectors using tail-to-head

Sketch the resultant of the following force vectors using the
tail-to-head method by first determining the resultant in the
\(x\)- and \(y\)-directions:

\(\vec{F}_{1} = \text{2}\text{ N}\) in the positive
\(y\)-direction

\(\vec{F}_{2} = \text{1,5}\text{ N}\) in the positive
\(x\)-direction

\(\vec{F}_{3} = \text{1,3}\text{ N}\) in the negative
\(y\)-direction

\(\vec{F}_{4} = \text{1}\text{ N}\) in the negative
\(x\)-direction

First determine \(\vec{R}_{x}\)

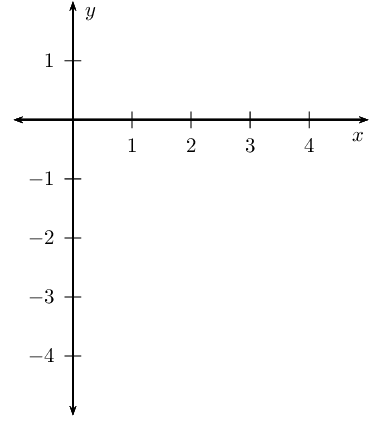

First draw the Cartesian plane with the vectors in the
\(x\)-direction:

Secondly determine \(\vec{R}_{y}\)

Next we draw the Cartesian plane with the vectors in the
\(y\)-direction:

Draw the resultant vectors, \(\vec{R}_{y}\) and
\(\vec{R}_{x}\) head-to-tail

Comparison of results

To double check, we can replot all the vectors again as we did in the
previous worked example to see that the outcome is the same:

Textbook Exercise 1.3

Sketch the resultant of the following force vectors
using the tail-to-head method:

\(\vec{F}_{1} = \text{2,1}\text{ N}\) in the
positive \(y\)-direction

\(\vec{F}_{2} = \text{1,5}\text{ N}\) in the
negative \(x\)-direction

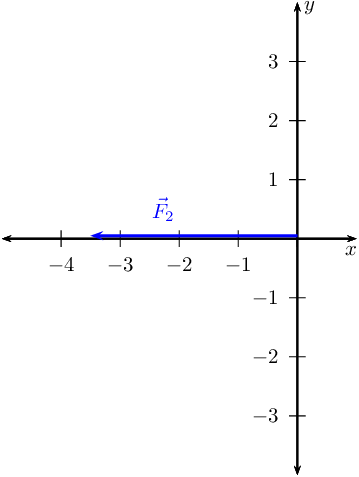

We first draw a Cartesian plane with the first vector
originating at the origin:

The next step is to take the second vector and draw
it from the head of the first vector:

The resultant, \(\vec{R}\), is the vector connecting
the tail of the first vector drawn to the head
of the last vector drawn:

Sketch the resultant of the following force vectors
using the tail-to-head method:

\(\vec{F}_{1} = \text{12}\text{ N}\) in the
positive \(y\)-direction

\(\vec{F}_{2} = \text{10}\text{ N}\) in the
positive \(x\)-direction

\(\vec{F}_{3} = \text{5}\text{ N}\) in the
negative \(y\)-direction

\(\vec{F}_{4} = \text{5}\text{ N}\) in the
negative \(x\)-direction

We first sketch the vectors on the Cartesian plane.
We choose a scale of \(\text{1}\) \(\text{cm}\)
= \(\text{2}\) \(\text{N}\). Remember to sketch
\(F_{2}\) starting at the head of \(F_{1}\),
\(F_{3}\) starting at the head of \(F_{2}\) and
\(F_{4}\) starting at the head of \(F_{3}\).

The resultant, \(\vec{R}\), is the vector connecting
the tail of the first vector drawn to the head
of the last vector drawn:

Sketch the resultant of the following force vectors
using the tail-to-head method by first
determining the resultant in the \(x\)- and
\(y\)-directions:

\(\vec{F}_{1} = \text{2}\text{ N}\) in the
positive \(y\)-direction

\(\vec{F}_{2} = \text{1,5}\text{ N}\) in the
negative \(y\)-direction

\(\vec{F}_{3} = \text{1,3}\text{ N}\) in the
negative \(y\)-direction

\(\vec{F}_{4} = \text{1}\text{ N}\) in the
negative \(x\)-direction

We first determine \(\vec{R}_{x}\)

Draw the Cartesian plane with the vectors in the
\(x\)-direction:

This is \(\vec{R}_{x}\) since it is the only vector
in the \(x\)-direction.

Secondly determine \(\vec{R}_{y}\)

Next we draw the Cartesian plane with the vectors in
the \(y\)-direction:

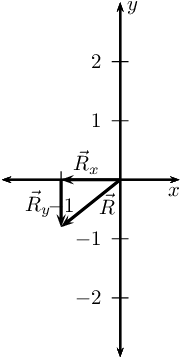

Now we draw the resultant vectors, \(\vec{R}_{y}\)
and \(\vec{R}_{x}\) head-to-tail:

You can check this answer by using the tail-to-head
method without first determining the resultant
in the \(x\)-direction and the \(y\)-direction.

Sketch the resultant of the following force vectors
using the tail-to-head method by first
determining the resultant in the \(x\)- and
\(y\)-directions:

\(\vec{F}_{1} = \text{6}\text{ N}\) in the
positive \(y\)-direction

\(\vec{F}_{2} = \text{3,5}\text{ N}\) in the
negative \(x\)-direction

\(\vec{F}_{3} = \text{8,7}\text{ N}\) in the
negative \(y\)-direction

\(\vec{F}_{4} = \text{3}\text{ N}\) in the
negative \(y\)-direction

We choose a scale of \(\text{1}\) \(\text{cm}\) :
\(\text{2}\) \(\text{N}\).

We first determine \(\vec{R}_{x}\)

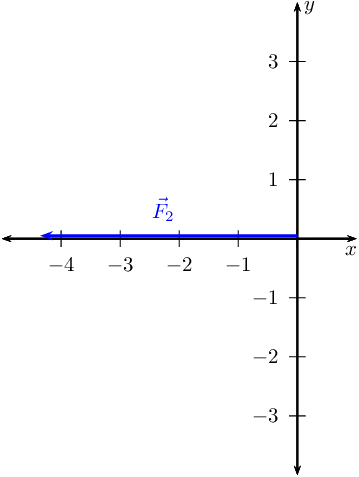

Draw the Cartesian plane with the vectors in the
\(x\)-direction:

This is \(\vec{R}_{x}\) since it is the only vector
in the \(x\)-direction.

Secondly determine \(\vec{R}_{y}\)

Next we draw the Cartesian plane with the vectors in
the \(y\)-direction:

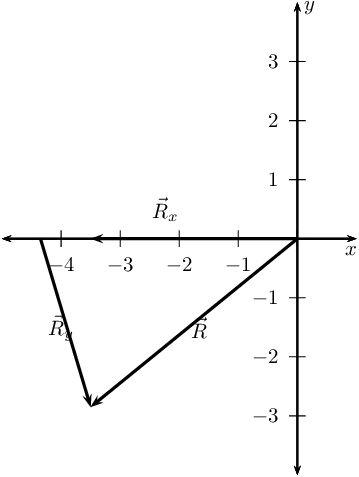

Now we draw the resultant vectors, \(\vec{R}_{y}\)
and \(\vec{R}_{x}\) head-to-tail:

You can check this answer by using the tail-to-head
method without first determining the resultant
in the \(x\)-direction and the \(y\)-direction.

Sketching tail-to-tail method

In this method we draw the two vectors with their tails on the origin. Then we draw a
line parallel to the first vector from the head of the second vector and vice
versa. Where the parallel lines intersect is the head of the resultant vector
that will also start at the origin. We will only deal with perpendicular vectors
but this procedure works for any vectors.

When dealing with more than two vectors the procedure is repetitive. First
find the resultant of any two of the vectors to be added. Then use the
same method to add the resultant from the first two vectors with a third
vector. This new resultant is then added to the fourth vector and so on,
until there are no more vectors to be added.

Let us apply this procedure to the same two vectors we used to illustrate the
head-to-tail method:

\(\vec{F}_{1} = \text{2}\text{ N}\) in the positive \(y\)-direction

\(\vec{F}_{2} = \text{1,5}\text{ N}\) in the positive \(x\)-direction

We first draw a Cartesian plane with the first vector originating at the origin:

Then we add the second vector but also originating from the origin so that the
vectors are drawn tail-to-tail:

Now we draw a line parallel to \(\vec{F}_{1}\) from the head of \(\vec{F}_{2}\):

Next we draw a line parallel to \(\vec{F}_{2}\) from the head of \(\vec{F}_{1}\):

Where the two lines intersect is the head of the resultant vector which will
originate at the origin so:

You might be asking what you would do if you had more than 2 vectors to add together.
In this case all you need to do is first determine \(\vec{R}_{x}\) by adding all
the vectors that are parallel to the \(x\)-direction and \(\vec{R}_{y}\) by
adding all the vectors that are parallel to the \(y\)-direction. Then you use
the tail-to-tail method to find the resultant of \(\vec{R}_{x}\) and
\(\vec{R}_{y}\).

Textbook Exercise 1.4

Sketch the resultant of the following force vectors using the
tail-to-tail method:

\(\vec{F}_{1} = \text{2,1}\text{ N}\) in the
positive \(y\)-direction

\(\vec{F}_{2} = \text{1,5}\text{ N}\) in the
negative \(x\)-direction

We first draw a Cartesian plane with the first vector
originating at the origin:

Then we add the second vector but also originating from the
origin so that the vectors are drawn tail-to-tail:

Now we draw a line parallel to \(\vec{F}_{1}\) from the head
of \(\vec{F}_{2}\):

Next we draw a line parallel to \(\vec{F}_{2}\) from the head
of \(\vec{F}_{1}\):

Where the two lines intersect is the head of the resultant
vector which will originate at the origin so:

Sketch the resultant of the following force vectors using the
tail-to-tail method by first determining the resultant
in the \(x\)- and \(y\)-directions:

\(\vec{F}_{1} = \text{2}\text{ N}\) in the positive
\(y\)-direction

\(\vec{F}_{2} = \text{1,5}\text{ N}\) in the
negative \(y\)-direction

\(\vec{F}_{3} = \text{1,3}\text{ N}\) in the
negative \(y\)-direction

\(\vec{F}_{4} = \text{1}\text{ N}\) in the negative
\(x\)-direction

We need to determine \(\vec{R}_{x}\) and \(\vec{R}_{y}\) and
then use these to find the resultant.

Determine \(\vec{R}_{x}\).

Draw the Cartesian plane with the vectors in the
\(x\)-direction:

This is \(\vec{R}_{x}\) since it is the only vector in the
\(x\)-direction.

Secondly determine \(\vec{R}_{y}\)

Next we draw the Cartesian plane with the vectors in the
\(y\)-direction:

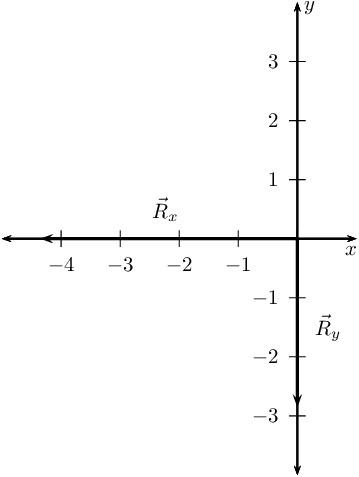

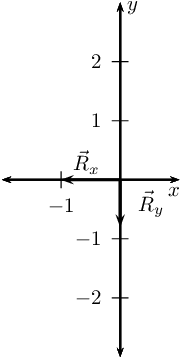

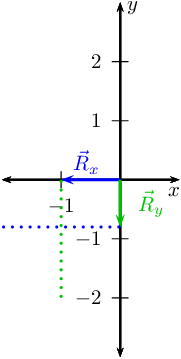

Now we draw the resultant vectors, \(\vec{R}_{y}\) and
\(\vec{R}_{x}\) tail-to-tail:

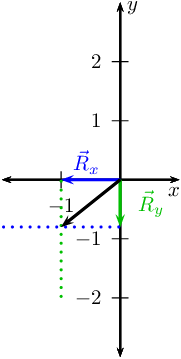

Now we can draw the lines to show us where the head of the
resultant must be:

And finally we find the resultant:

Sketch the resultant of the following force vectors using the
tail-to-tail method by first determining the resultant
in the \(x\)- and \(y\)-directions:

\(\vec{F}_{1} = \text{6}\text{ N}\) in the positive
\(y\)-direction

\(\vec{F}_{2} = \text{3,5}\text{ N}\) in the
negative \(x\)-direction

\(\vec{F}_{3} = \text{8,7}\text{ N}\) in the
negative \(y\)-direction

\(\vec{F}_{4} = \text{3}\text{ N}\) in the negative
\(y\)-direction

We choose a scale of \(\text{1}\) \(\text{cm}\) =
\(\text{2}\) \(\text{N}\).

We first determine \(\vec{R}_{x}\)

Draw the Cartesian plane with the vectors in the
\(x\)-direction:

This is \(\vec{R}_{x}\) since it is the only vector in the
\(x\)-direction.

Secondly determine \(\vec{R}_{y}\)

Next we draw the Cartesian plane with the vectors in the
\(y\)-direction:

Now we draw the resultant vectors, \(\vec{R}_{y}\) and
\(\vec{R}_{x}\) tail-to-tail:

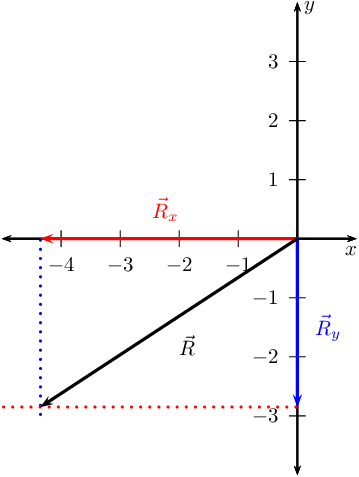

Now we can draw the lines to show us where the head of the
resultant must be:

And finally we find the resultant:

Closed vector diagrams

A closed vector diagram is a set of vectors drawn on the Cartesian using the
tail-to-head method and that has a resultant with a magnitude of zero. This
means that if the first vector starts at the origin the last vector drawn must
end at the origin. The vectors form a closed polygon, no matter how many of them
are drawn. Here are a few examples of closed vector diagrams:

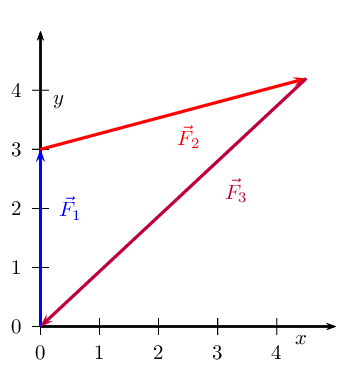

In this case there were 3 force vectors. When drawn tail-to-head with the first force
starting at the origin the last force drawn ends at the origin. The resultant
would have a magnitude of zero. The resultant is drawn from the tail of the
first vector to the head of the final vector. In the diagram below there are 4
vectors that also form a closed vector diagram.

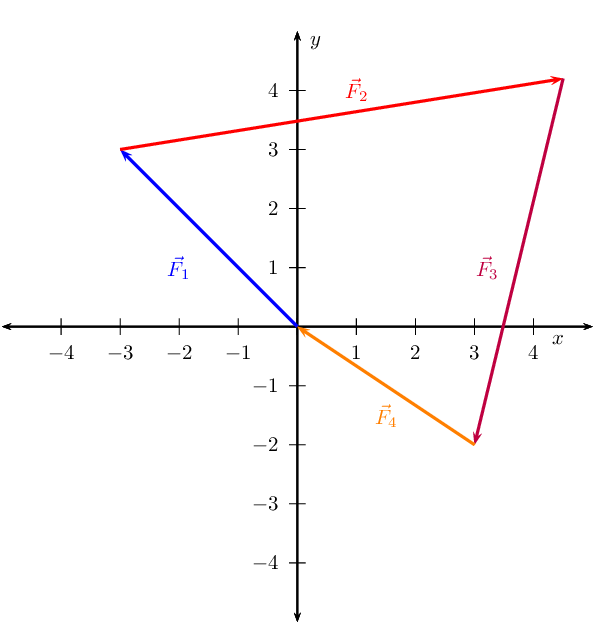

In this case with 4 vectors, the shape is a 4-sided polygon. Any polygon made up of
vectors drawn tail-to-head will be a closed vector diagram because a polygon has
no gaps.

Using Pythagoras' theorem to find magnitude

If we wanted to know the resultant of the three blue vectors and the three red
vectors in Figure 1.3 we
can use the resultant vectors in the \(x\)- and \(y\)-directions to determine
this.

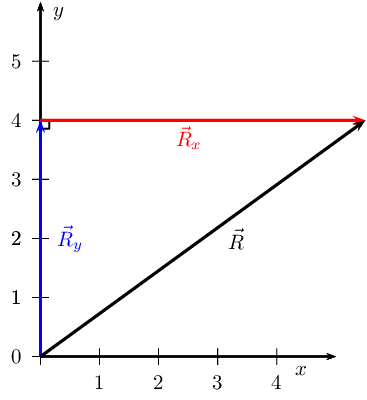

The black arrow represents the resultant of the vectors \(\vec{R}_x\) and
\(\vec{R}_y\). We can find the magnitude of this vector using the theorem of
Pythagoras because the three vectors form a right angle triangle. If we had
drawn the vectors to scale we would be able to measure the magnitude of the
resultant as well.

What we've actually sketched out already is our approach to finding the resultant of
many vectors using components so remember this example when we get there a
little later.

Worked example 4: Finding the magnitude of the resultant

The force vectors in Figure 1.3 have the following
magnitudes: \(\text{1}\) \(\text{N}\), \(\text{1}\)
\(\text{N}\), \(\text{2}\) \(\text{N}\) for the blue ones and
\(\text{2}\) \(\text{N}\), \(\text{2}\) \(\text{N}\) and
\(\text{1,5}\) \(\text{N}\) for the red ones. Determine the
magnitude of the resultant.

Determine the resultant of the vectors parallel to the
\(y\)-axis

The resultant of the vectors parallel to the \(y\)-axis is found by
adding the magnitudes (lengths) of three vectors because they
all point in the same direction. The answer is
\(\vec{R}_y\)=\(\text{1}\) \(\text{N}\) + \(\text{1}\)
\(\text{N}\) + \(\text{2}\) \(\text{N}\) = \(\text{4}\)
\(\text{N}\) in the positive \(y\)-direction.

Determine the resultant of the vectors parallel to the
\(x\)-axis

The resultant of the vectors parallel to the \(x\)-axis is found by
adding the magnitudes (lengths) of three vectors because they
all point in the same direction. The answer is
\(\vec{R}_x\)=\(\text{2}\) \(\text{N}\) + \(\text{2}\)
\(\text{N}\) + \(\text{1,5}\) \(\text{N}\) = \(\text{5,5}\)
\(\text{N}\) in the positive \(x\)-direction.

Determine the magnitude of the resultant

We have a right angled triangle. We also know the length of two of
the sides. Using Pythagoras we can find the length of the third
side. From what we know about resultant vectors this length will
be the magnitude of the resultant vector.

The resultant is:
\begin{align*}
R_x^{2} + R_y^{2} &= R^{2}\ \text{(Pythagoras' theorem)}\\
(\text{5,5})^{2} + (4)^{2} &= R^{2}\\
R &= \text{6,8}
\end{align*}

Quote the final answer

Magnitude of the resultant: \(\text{6,8}\) \(\text{N}\)

Note: we did not determine the resultant vector in the worked
example above because we only determined the magnitude. A vector needs a
magnitude and a direction. We did not
determine the direction of the resultant vector.

Graphical methods (ESBK9)

Graphical techniques

In grade 10 you learnt how to add vectors in one dimension graphically.

We can expand these ideas to include vectors in two-dimensions. The following worked
example shows this.

Worked example 5: Finding the magnitude of the resultant in
two dimensions graphically

Given two vectors, \(\vec{R}_y\) = \(\text{4}\) \(\text{N}\) in the
positive \(y\)-direction and \(\vec{R}_x\) = \(\text{3}\)
\(\text{N}\) in the positive \(x\)-direction, use the
tail-to-head method to find the resultant of these vectors
graphically.

Choose a scale and draw axes

The vectors we have do not have very big magnitudes so we can choose
simple scale, we can use \(\text{1}\) \(\text{N}\) :
\(\text{1}\) \(\text{cm}\) as our scale for the drawing.

Then we draw axes that the vector diagram should fit in. The largest
vector has length \(\text{4}\) \(\text{N}\) and both vectors are
in the positive direction so we can draw axes from the origin to
\(\text{5}\) and expect the vectors to fit.

Draw \(\vec{R}_x\)

The magnitude of \(\vec{R}_x\) is \(\text{3}\) \(\text{N}\) so the
arrow we need to draw must be \(\text{3}\) \(\text{cm}\) long.
The arrow must point in the positive \(x\)-direction.

Draw \(\vec{R}_y\)

The length of \(\vec{R}_y\) is \(\text{4}\) so the arrow we need to
draw must be \(\text{4}\) \(\text{cm}\) long. The arrow must
point in the positive \(y\)-direction. The important fact to
note is that we are implementing the head-to-tail method so the
vector must start at the end (head) of \(\vec{R}_x\).

Draw the resultant vector, \(\vec{R}\)

The resultant vector is the vector from the tail of the first vector
we drew directly to the head of the last vector we drew. This
means we need to draw a vector from the tail of \(\vec{R}_{x}\)
to the head of \(\vec{R}_{y}\).

Measure the resultant, \(\vec{R}\)

We are solving the problem graphically so we now need to measure the
magnitude of the vector and use the scale we chose to convert
our answer from the diagram to the actual result. In the last
diagram the resultant, \(\vec{R}\) is \(\text{5}\) \(\text{cm}\)
long therefore the magnitude of the vector is \(\text{5}\)
\(\text{N}\).

The direction of the resultant, \(\theta\), we need to measure from
the diagram using a protractor. The angle that the vector makes
with the \(x\)-axis is \(\text{53}\)\(\text{°}\).

Quote the final answer

\(\vec{R}\) is \(\text{5}\) \(\text{N}\) at
\(\text{53}\)\(\text{°}\) from the positive
\(x\)-direction.

In the case where you have to find the resultant of more than two vectors first apply
the tail-to-head method to all the vectors parallel to the one axis and then all
the vectors parallel to the other axis. For example, you would first calculate
\(\vec{R}_{y}\) from all the vectors parallel to the \(y\)-axis and then
\(\vec{R}_{x}\) from all the vectors parallel to the \(x\)-axis. After that you
apply the same procedure as in the previous worked example to the get the final
resultant.

Worked example 6: Finding the magnitude of the resultant in
two dimensions graphically

Given the following three force vectors, determine the resultant
force:

\(\vec{F}_{1}\) = \(\text{3,4}\) \(\text{N}\) in the
positive \(x\)-direction

\(\vec{F}_{2}\) = \(\text{4}\) \(\text{N}\) in the
positive \(x\)-direction

\(\vec{F}_{3}\) = \(\text{3}\) \(\text{N}\) in the
negative \(y\)-direction

Determine \(\vec{R}_{x}\)

First we determine the resultant of all the vectors that are parallel
to the \(x\)-axis. There are two vectors \(\vec{F}_{1}\) and
\(\vec{F}_{2}\) that we need to add. We do this using the
tail-to-head method for co-linear vectors.

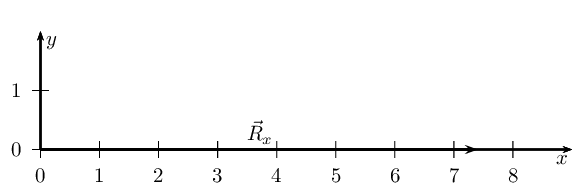

The single vector, \(\vec{R}_{x}\), that would give us the same
outcome is:

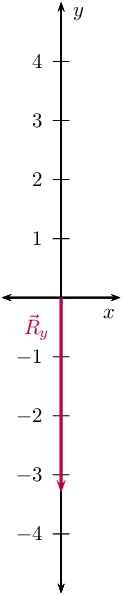

Determine \(\vec{R}_{y}\)

There is only one vector in the \(y\)-direction, \(\vec{F}_{3}\),
therefore \(\vec{R}_{y}\) = \(\vec{F}_{3}\).

Choose a scale and draw axes

The vectors we have do not have very big magnitudes so we can choose
simple scale, we can use \(\text{1}\) \(\text{N}\) :
\(\text{1}\) \(\text{cm}\) as our scale for the drawing.

Then we draw axes that the diagram should fit on. The longest vector
has length \(\text{7,4}\) \(\text{N}\). We need our axes to
extend just further than the vectors aligned with each axis. Our
axes need to start at the origin and go beyond \(\text{7,4}\)
\(\text{N}\) in the positive \(x\)-direction and further than
\(\text{3}\) \(\text{N}\) in the negative \(y\)-direction. Our
scale choice of \(\text{1}\) \(\text{N}\) : \(\text{1}\)
\(\text{cm}\) means that our axes actually need to extend
\(\text{7,4}\) \(\text{cm}\) in the positive \(x\)-direction and
further than \(\text{3}\) \(\text{cm}\) in the negative
\(y\)-direction

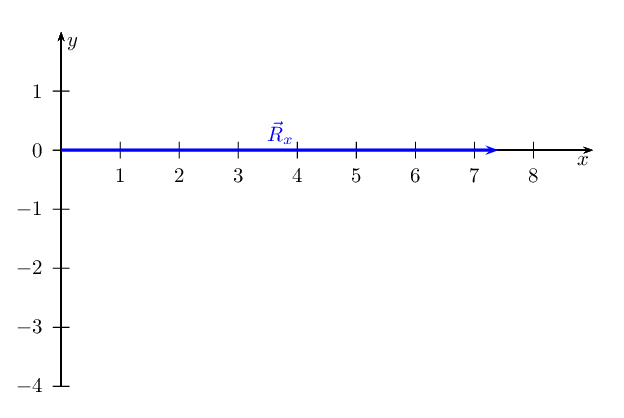

Draw \(\vec{R_x}\)

The magnitude of \(\vec{R}_x\) is \(\text{7,4}\) \(\text{N}\) so the
arrow we need to draw must be \(\text{7,4}\) \(\text{cm}\) long.
The arrow must point in the positive \(x\)-direction.

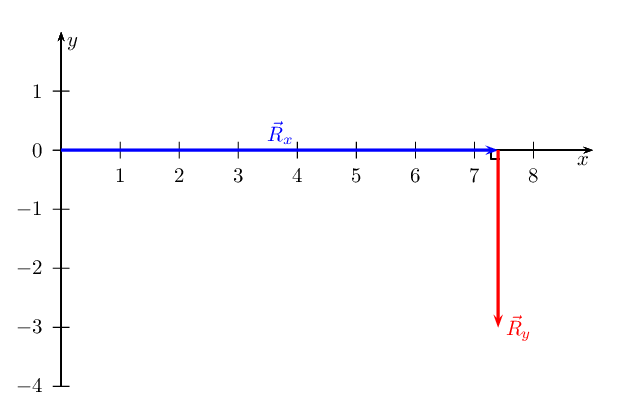

Draw \(\vec{R_y}\)

The magnitude of \(\vec{R}_y\) is \(\text{3}\) \(\text{N}\) so the
arrow we need to draw must be \(\text{3}\) \(\text{cm}\) long.
The arrow must point in the negative \(y\)-direction. The
important fact to note is that we are implementing the
head-to-tail method so the vector must start at the end (head)
of \(\vec{R}_{x}\).

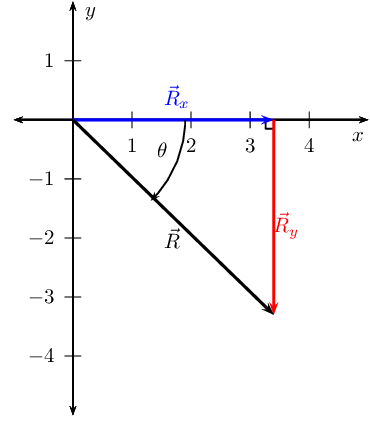

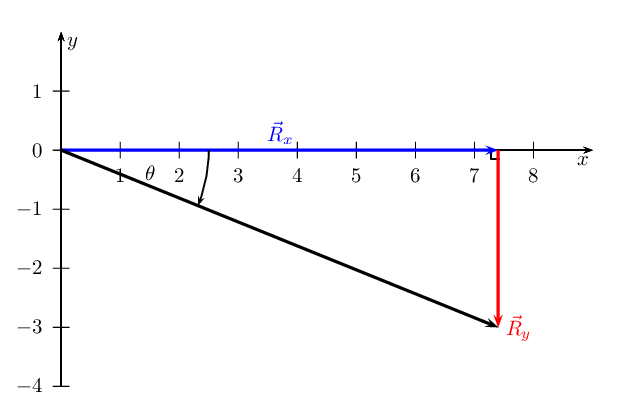

Draw the resultant vector, \(\vec{R}\)

The resultant vector is the vector from the tail of the first vector
we drew directly to the head of the last vector we drew. This
means we need to draw a vector from the tail of \(\vec{R}_{x}\)
to the head of \(\vec{R}_{y}\).

Measure the resultant, \(\vec{R}\)

We are solving the problem graphically so we now need to measure the
magnitude of the vector and use the scale we chose to convert
our answer from the diagram to the actual result. In the last
diagram the resultant, \(\vec{R}\) is \(\text{8,0}\)
\(\text{cm}\) long therefore the magnitude of the vector is
\(\text{8,0}\) \(\text{N}\).

The direction of the resultant we need to measure from the diagram
using a protractor. The angle that the vector makes with the
\(x\)-axis is \(\text{22}\)\(\text{°}\).

Quote the final answer

\(\vec{R}\) is \(\text{8,0}\) \(\text{N}\) at
\(-\text{22}\)\(\text{°}\) from the positive
\(x\)-direction.

Worked example 7: Finding the resultant in two dimensions
graphically

Given the following three force vectors, determine the resultant
force:

\(\vec{F}_{1}\) = \(\text{2,3}\) \(\text{N}\) in the
positive \(x\)-direction

\(\vec{F}_{2}\) = \(\text{4}\) \(\text{N}\) in the
positive \(y\)-direction

\(\vec{F}_{3}\) = \(\text{3,3}\) \(\text{N}\) in the
negative \(y\)-direction

\(\vec{F}_{4}\) = \(\text{2,1}\) \(\text{N}\) in the
negative \(y\)-direction

Determine \(\vec{R}_{x}\)

There is only one vector in the \(x\)-direction, \(\vec{F}_{1}\),
therefore \(\vec{R}_{x}\) = \(\vec{F}_{1}\).

Determine \(\vec{R}_{y}\)

Then we determine the resultant of all the vectors that are parallel
to the \(y\)-axis. There are three vectors \(\vec{F}_{2}\),
\(\vec{F}_{3}\) and \(\vec{F}_{4}\) that we need to add. We do
this using the tail-to-head method for co-linear vectors.

The single vector, \(\vec{R}_{y}\), that would give us the same
effect is:

Choose a scale and draw axes

We choose a scale \(\text{1}\) \(\text{N}\) : \(\text{1}\)
\(\text{cm}\) for the drawing.

Then we draw axes that the diagram should fit in. We need our axes to
extend just further than the vectors aligned with each axis. Our
axes need to start at the origin and go beyond \(\text{2,3}\)
\(\text{N}\) in the positive \(x\)-direction and further than
\(\text{1,4}\) \(\text{N}\) in the negative \(y\)-direction. Our
scale choice of \(\text{1}\) \(\text{N}\) = \(\text{1}\)
\(\text{cm}\) means that our axes actually need to extend
\(\text{2,3}\) \(\text{cm}\) in the positive \(x\)-direction and
further than \(\text{1,4}\) \(\text{cm}\) in the negative
\(y\)-direction

Draw \(\vec{R}_x\)

The magnitude of \(\vec{R}_x\) is \(\text{2,3}\) \(\text{N}\) so the
arrow we need to draw must be \(\text{2,3}\) \(\text{cm}\) long.
The arrow must point in the positive \(x\)-direction.

Draw \(\vec{R}_y\)

The magnitude of \(\vec{R}_y\) is \(\text{1,4}\) \(\text{N}\) so the
arrow we need to draw must be \(\text{1,4}\) \(\text{cm}\) long.
The arrow must point in the negative \(y\)-direction. The
important fact to note is that we are implementing the
head-to-tail method so the vector must start at the end (head)
of \(\vec{R}_{x}\).

Draw the resultant vector, \(\vec{R}\)

The resultant vector is the vector from the tail of the first vector
we drew directly to the head of the last vector we drew. This
means we need to draw a vector from the tail of \(\vec{R}_{x}\)
to the head of \(\vec{R}_{y}\).

Measure the resultant, \(\vec{R}\)

We are solving the problem graphically so we now need to measure the
magnitude of the vector and use the scale we chose to convert
our answer from the diagram to the magnitude of the vector. In
the last diagram the resultant, \(\vec{R}\) is \(\text{2,7}\)
\(\text{cm}\) long therefore the magnitude of the vector is
\(\text{2,7}\) \(\text{N}\).

The direction of the resultant we need to measure from the diagram
using a protractor. The angle that the vector makes with the
\(x\)-axis is \(\text{31}\) degrees.

Quote the final answer

\(\vec{R}\) is \(\text{2,7}\) \(\text{N}\) at
\(-\text{31}\)\(\text{°}\) from the positive
\(x\)-direction.

Worked example 8: Finding the resultant in two dimensions
graphically

A number of tugboats are trying to manoeuvre a submarine in the
harbour but they are not working as a team. Each tugboat is
exerting a different force on the submarine.

Given the following force vectors, determine the resultant force:

\(\vec{F}_{1}\) = \(\text{3,4}\) \(\text{kN}\) in the
positive \(x\)-direction

\(\vec{F}_{2}\) = \(\text{4 000}\) \(\text{N}\)
in the positive \(y\)-direction

\(\vec{F}_{3}\) = \(\text{300}\) \(\text{N}\) in the
negative \(y\)-direction

\(\vec{F}_{4}\) = \(\text{7}\) \(\text{kN}\) in the
negative \(y\)-direction

Convert to consistent S.I. units

To use the graphical method of finding the resultant we need to work
in the same units. Strictly speaking in this problem all the
vectors are in newtons but they have different factors which
will affect the choice of scale. These need to taken into
account and the simplest approach is to convert them all to a
consistent unit and factor. We could use kN or N, the choice
does not matter. We will choose kN. Remember that k represents a
factor of \(\times 10^{3}\).

\(\vec{F}_{1}\) and \(\vec{F}_{4}\) do not require any adjustment
because they are both in kN. To convert N to kN we use:
\begin{align*}
\text{kN} &= \times 10^{3}\\
\frac{\text{N}}{\text{kN}} &= \frac{1}{\times 10^{3}}\\
\text{N} &= \times 10^{-3}\ \text{kN}
\end{align*}

To convert the magnitude of \(\vec{F}_{2}\) to kN:
\begin{align*}
F_2 &= \text{4 000}\text{ N}\\
F_2 &= \text{4 000} \times \text{10}^{-\text{3}}\text{
kN}\\
F_2 &= \text{4}\text{ kN}
\end{align*}
Therefore \(\vec{F}_{2}\) = \(\text{4}\) \(\text{kN}\) in the
positive \(y\)-direction.

To convert the magnitude of \(\vec{F}_{3}\) to kN:
\begin{align*}
F_3 &= \text{300}\text{ N}\\
F_3 &= \text{300} \times \text{10}^{-\text{3}}\text{ kN}\\
F_3 &= \text{0,3}\text{ kN}
\end{align*}
Therefore \(\vec{F}_{3}\) = \(\text{0,3}\) \(\text{kN}\) in the
negative \(y\)-direction. So:

\(\vec{F}_{1}\) = \(\text{3,4}\) \(\text{kN}\) in the
positive \(x\)-direction

\(\vec{F}_{2}\) = \(\text{4}\) \(\text{kN}\) in the
positive \(y\)-direction

\(\vec{F}_{3}\) = \(\text{0,3}\) \(\text{kN}\) in the
negative \(y\)-direction

\(\vec{F}_{4}\) = \(\text{7}\) \(\text{kN}\) in the
negative \(y\)-direction

Choose a scale and draw axes

The vectors we have do have very big magnitudes so we need to choose
a scale that will allow us to draw them in a reasonable space,
we can use \(\text{1}\) \(\text{kN}\) : \(\text{1}\)
\(\text{cm}\) as our scale for the drawings.

Determine \(\vec{R}_{x}\)

There is only one vector in the \(x\)-direction, \(\vec{F}_{1}\),
therefore \(\vec{R}_{x}\) = \(\vec{F}_{1}\).

Determine \(\vec{R}_{y}\)

Then we determine the resultant of all the vectors that are parallel
to the \(y\)-axis. There are three vectors \(\vec{F}_{2}\),
\(\vec{F}_{3}\) and \(\vec{F}_{4}\) that we need to add. We do
this using the tail-to-head method for co-linear vectors.

The single vector, \(\vec{R}_{y}\), that would give us the same
outcome is:

Draw axes

Then we draw axes that the diagram should fit on. We need our axes to
extend just further than the vectors aligned with each axis. Our
axes need to start at the origin and go beyond \(\text{3,4}\)
\(\text{kN}\) in the positive \(x\)-direction and further than
\(\text{3,3}\) \(\text{kN}\) in the negative \(y\)-direction.
Our scale choice of \(\text{1}\) \(\text{kN}\) : \(\text{1}\)
\(\text{cm}\) means that our axes actually need to extend
\(\text{3,4}\) \(\text{cm}\) in the positive \(x\)-direction and
further than \(\text{3,3}\) \(\text{cm}\) in the negative
\(y\)-direction

Draw \(\vec{R}_x\)

The length of \(\vec{R}_x\) is \(\text{3,4}\) \(\text{kN}\) so the
arrow we need to draw must be \(\text{3,4}\) \(\text{cm}\) long.
The arrow must point in the positive \(x\)-direction.

Draw \(\vec{R}_y\)

The length of \(\vec{R}_y\) is \(\text{3,3}\) \(\text{kN}\) so the
arrow we need to draw must be \(\text{3,3}\) \(\text{cm}\) long.
The arrow must point in the negative \(y\)-direction. The
important fact to note is that we are implementing the
head-to-tail method so the vector must start at the end (head)
of \(\vec{R}_{x}\).

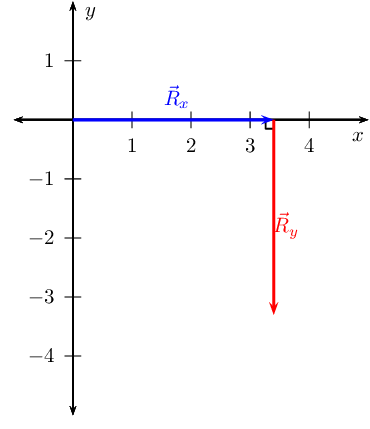

Draw the resultant vector, \(\vec{R}\)

The resultant vector is the vector from the tail of the first vector
we drew directly to the head of the last vector we drew. This
means we need to draw a vector from the tail of \(\vec{R}_{x}\)
to the head of \(\vec{R}_{y}\).

Measure the resultant, \(\vec{R}\)

We are solving the problem graphically so we now need to measure the
magnitude of the vector and use the scale we chose to convert
our answer from the diagram to the actual result. In the last
diagram the resultant, \(\vec{R}\) is \(\text{4,7}\)
\(\text{cm}\) long therefore the magnitude of the vector is
\(\text{4,7}\) \(\text{kN}\).

The direction of the resultant we need to measure from the diagram
using a protractor. The angle that the vector makes with the
\(x\)-axis is \(\text{44}\)\(\text{°}\).

Quote the final answer

\(\vec{R}\) is \(\text{4,7}\) \(\text{kN}\) at
\(-\text{44}\)\(\text{°}\) from the positive
\(x\)-direction.

Algebraic methods (ESBKB)

Algebraic addition and subtraction of vectors

In grade 10 you learnt about addition and subtraction of vectors in one dimension.
The following worked example provides a refresher of the concepts.

Worked example 9: Adding vectors algebraically

A force of \(\text{5}\) \(\text{N}\) to the right is applied to a
crate. A second force of \(\text{2}\) \(\text{N}\) to the left
is also applied to the crate. Calculate algebraically the
resultant of the forces applied to the crate.

Draw a sketch

A simple sketch will help us understand the problem.

Decide which method to use to calculate the resultant

Remember that force is a vector. Since the forces act along a
straight line (i.e. the \(x\)-direction), we
can use the algebraic technique of vector addition.

Choose a positive direction

Choose the positive direction to be to the right.
This means that the negative direction is to
the left.

Rewriting the problem using the choice of a positive direction gives
us a force of \(\text{5}\) \(\text{N}\) in the positive
\(x\)-direction and force of \(\text{2}\) \(\text{N}\) in the
negative \(x\)-direction being applied to the crate.

Remember that in this case a positive force means to the right:
\(\text{3}\) \(\text{N}\) to the right.

We can now expand on this work to include vectors in two dimensions.

Worked example 10: Algebraic solution in two dimensions

A force of \(\text{40}\) \(\text{N}\) in the positive \(x\)-direction
acts simultaneously (at the same time) to a force of
\(\text{30}\) \(\text{N}\) in the positive \(y\)-direction.
Calculate the magnitude of the resultant force.

Draw a rough sketch

As before, the rough sketch looks as follows:

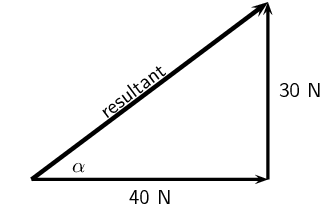

Determine the length of the resultant

Note that the triangle formed by the two force vectors and the
resultant vector is a right-angle triangle. We can thus use the
Theorem of Pythagoras to determine the length of the resultant.
Let \(R\) represent the length of the resultant vector. Then:
\begin{align*}
F_x^{2} + F_y^{2} &= R^{2}\ \text{Pythagoras' theorem}\\
(40)^{2} + (30)^{2} &= R^{2}\\
R &= \text{50}\text{ N}
\end{align*}

Quote the resultant

The magnitude of the resultant force is then \(\text{50}\)
\(\text{N}\).

Direction

For two dimensional vectors we have only covered finding the magnitude of vectors
algebraically. We also need to know the direction. For vectors in one dimension
this was simple. We chose a positive direction and then the resultant was either
in the positive or in the negative direction. In grade 10 you learnt about the
different ways to specify direction. We will now look at using trigonometry to
determine the direction of the resultant vector.

We can use simple trigonometric identities to calculate the direction. We can
calculate the direction of the resultant in the previous worked example.

Worked example 11: Direction of the resultant

A force of \(\text{40}\) \(\text{N}\) in the positive \(x\)-direction
acts simultaneously (at the same time) to a force of
\(\text{30}\) \(\text{N}\) in the positive \(y\)-direction.
Calculate the magnitude of the resultant force.

Magnitude

We determined the magnitude of the resultant vector in the previous
worked example to be \(\text{50}\) \(\text{N}\). The sketch of
the situation is:

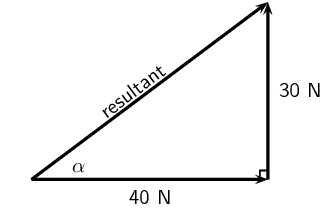

Determine the direction of the resultant

To determine the direction of the resultant force, we calculate the
angle α between the resultant force vector and the positive
\(x\)-axis, by using simple trigonometry:
\begin{align*}
\tan\alpha &= \frac{\text{opposite side}}
{\text{adjacent side}} \\
\tan\alpha &= \frac{\text{30}}{\text{40}} \\
\alpha &= \tan^{-1}(\text{0,75}) \\
\alpha &= \text{36,87}\text{°}
\end{align*}

Quote the resultant

The resultant force is then \(\text{50}\) \(\text{N}\) at
\(\text{36,9}\)\(\text{°}\) to the positive \(x\)-axis.

Algebraic addition of vectors

Textbook Exercise 1.5

A force of \(\text{17}\) \(\text{N}\) in the positive \(x\)-direction
acts
simultaneously (at the same
time) to a force of \(\text{23}\) \(\text{N}\) in the positive
\(y\)-direction.
Calculate the resultant
force.

We draw a rough sketch:

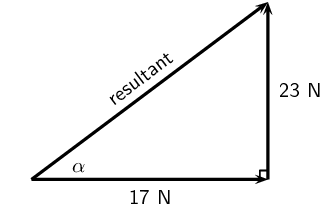

Now we determine the length of the resultant.s

We note that the triangle formed by the two force vectors and the
resultant vector is
a right-angle
triangle. We can thus use the Theorem of Pythagoras to determine
the length of
the resultant. Let \(R\)
represent the length of the resultant vector. Then:
\begin{align*}
F_x^{2} + F_y^{2} &= R^{2}\ \text{Pythagoras' theorem}\\
(17)^{2} + (23)^{2} &= R^{2}\\
R &= \text{28,6}\text{ N}
\end{align*}

To determine the direction of the resultant force, we calculate the
angle α
between the resultant
force vector and the positive \(x\)-axis, by using simple
trigonometry:
\begin{align*}
\tan\alpha &= \frac{\text{opposite side}}
{\text{adjacent side}} \\
\tan\alpha &= \frac{\text{23}}{\text{17}} \\
\alpha &= \tan^{-1}(\text{1,353}) \\
\alpha &= \text{53,53}\text{°}
\end{align*}

The resultant force is then \(\text{28,6}\) \(\text{N}\) at
\(\text{53,53}\)\(\text{°}\) to the
positive \(x\)-axis.

A force of \(\text{23,7}\) \(\text{N}\) in the negative
\(x\)-direction acts
simultaneously to a force of
\(\text{9}\) \(\text{N}\) in the positive \(y\)-direction.
Calculate the
resultant force.

We draw a rough sketch:

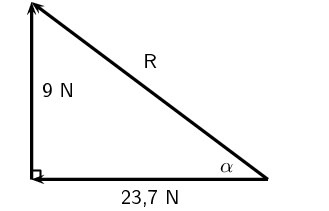

Now we determine the length of the resultant.

We note that the triangle formed by the two force vectors and the
resultant vector is
a right-angle
triangle. We can thus use the Theorem of Pythagoras to determine
the length of
the resultant. Let \(R\)
represent the length of the resultant vector. Then:
\begin{align*}
F_x^{2} + F_y^{2} &= R^{2}\ \text{Pythagoras' theorem}\\
(\text{23,7})^{2} + (9)^{2} &= R^{2}\\
R &= \text{25,4}\text{ N}
\end{align*}

To determine the direction of the resultant force, we calculate the
angle α
between the resultant
force vector and the positive \(x\)-axis, by using simple
trigonometry:
\begin{align*}
\tan\alpha &= \frac{\text{opposite side}}
{\text{adjacent side}} \\
\tan\alpha &= \frac{\text{9}}{\text{23,7}} \\
\alpha &= \tan^{-1}(\text{0,3797}) \\
\alpha &= \text{20,79}\text{°}
\end{align*}

The resultant force is then \(\text{25,4}\) \(\text{N}\) at
\(\text{20,79}\)\(\text{°}\) to the
\(x\)-axis. However we actually give this as
\(\text{159,21}\)\(\text{°}\)
(i.e.
\(\text{180}\)\(\text{°}\) minus
\(\text{20,79}\)\(\text{°}\)) to keep
with the convention we have
defined of giving vector directions.

Four forces act simultaneously at a point, find the resultant if the
forces are:

\(\vec{F}_{1}\) = \(\text{2,3}\) \(\text{N}\) in the
positive
\(x\)-direction

\(\vec{F}_{2}\) = \(\text{4}\) \(\text{N}\) in the
positive
\(y\)-direction

\(\vec{F}_{3}\) = \(\text{3,3}\) \(\text{N}\) in the
negative
\(y\)-direction

\(\vec{F}_{4}\) = \(\text{2,1}\) \(\text{N}\) in the
negative
\(y\)-direction

We note that we have more than two vectors so we must first find the
resultant in the
\(x\)-direction and
the resultant in the \(y\)-direction.

In the \(x\)-direction we only have one vector and so this is the
resultant.

In the \(y\)-direction we have three vectors. We can add these
algebraically to find
\(\vec{R}_{y}\):

Now we use \(\vec{R}_{x}\) and \(\vec{R}_{y}\) to find the resultant.

We note that the triangle formed by \(\vec{R}_{x}\), \(\vec{R}_{y}\)
and the
resultant vector is a
right-angle triangle. We can thus use the Theorem of Pythagoras
to determine the
length of the resultant.
Let \(R\) represent the length of the resultant vector. Then:
\begin{align*}
F_x^{2} + F_y^{2} &= R^{2}\ \text{Pythagoras' theorem}\\
(\text{2,3})^{2} + (-\text{1,4})^{2} &= R^{2}\\
R &= \text{2,69}\text{ N}
\end{align*}

To determine the direction of the resultant force, we calculate the
angle α
between the resultant
force vector and the positive \(x\)-axis, by using simple
trigonometry:
\begin{align*}
\tan\alpha &= \frac{\text{opposite side}}
{\text{adjacent side}} \\
\tan\alpha &= \frac{\text{1,4}}{\text{2,3}} \\
\alpha &= \tan^{-1}(\text{0,6087}) \\
\alpha &= \text{31,33}\text{°}
\end{align*}

The resultant force is then \(\text{2,69}\) \(\text{N}\) at
\(\text{31,33}\)\(\text{°}\) to the
\(x\)-axis. However we actually give this as
\(\text{328,67}\)\(\text{°}\)
to keep with the convention
we have defined of giving vector directions.

The following forces act simultaneously on a pole, if the pole
suddenly snaps in
which direction will it be
pushed:

\(\vec{F}_{1}\) = \(\text{2,3}\) \(\text{N}\) in the
negative
\(x\)-direction

\(\vec{F}_{2}\) = \(\text{11,7}\) \(\text{N}\) in the
negative
\(y\)-direction

\(\vec{F}_{3}\) = \(\text{6,9}\) \(\text{N}\) in the
negative
\(y\)-direction

\(\vec{F}_{4}\) = \(\text{1,9}\) \(\text{N}\) in the
negative
\(y\)-direction

To determine the answer we need to find the magnitude and direction
of the resultant.
This is then the
direction in which the pole will be pushed.

We note that we have more than two vectors so we must first find the
resultant in the
\(x\)-direction and
the resultant in the \(y\)-direction.

In the \(x\)-direction we only have one vector and so this is the
resultant.

In the \(y\)-direction we have three vectors. We can add these
algebraically to find
\(\vec{R}_{y}\):

Now we use \(\vec{R}_{x}\) and \(\vec{R}_{y}\) to find the resultant.

We note that the triangle formed by \(\vec{R}_{x}\), \(\vec{R}_{y}\)
and the
resultant vector is a
right-angle triangle. We can thus use the Theorem of Pythagoras
to determine the
length of the resultant.
Let \(R\) represent the length of the resultant vector. Then:
\begin{align*}
F_x^{2} + F_y^{2} &= R^{2}\ \text{Pythagoras' theorem}\\
(-\text{2,3})^{2} + (-\text{20,5})^{2} &= R^{2}\\
R &= \text{20,63}\text{ N}
\end{align*}

A rough sketch will help to determine the direction.

To determine the direction of the resultant force, we calculate the
angle α
between the resultant
force vector and the positive \(x\)-axis, by using simple
trigonometry:
\begin{align*}
\tan\alpha &= \frac{\text{opposite side}}
{\text{adjacent side}} \\
\tan\alpha &= \frac{\text{2,3}}{\text{20,5}} \\
\alpha &= \tan^{-1}(\text{0,112}) \\
\alpha &= \text{6,40}\text{°}
\end{align*}

The resultant force acts in a direction of
\(\text{6,40}\)\(\text{°}\) to the
\(x\)-axis. However we
actually give this as \(\text{186,4}\)\(\text{°}\) to keep
with the
convention we have defined of
giving vector directions.
